Engineered for Excellence
GKBM Casement Profiles offer superior strength, weather resistance, and timeless style – making them the perfect choice for any architectural need.
Engineered to Lead
High-performance profiles built for strength, insulation, and sleek design.
Built to Last
Weather-resistant and durable profiles for long-term use.
Framed with Precision
Accurate fitting for seamless performance.

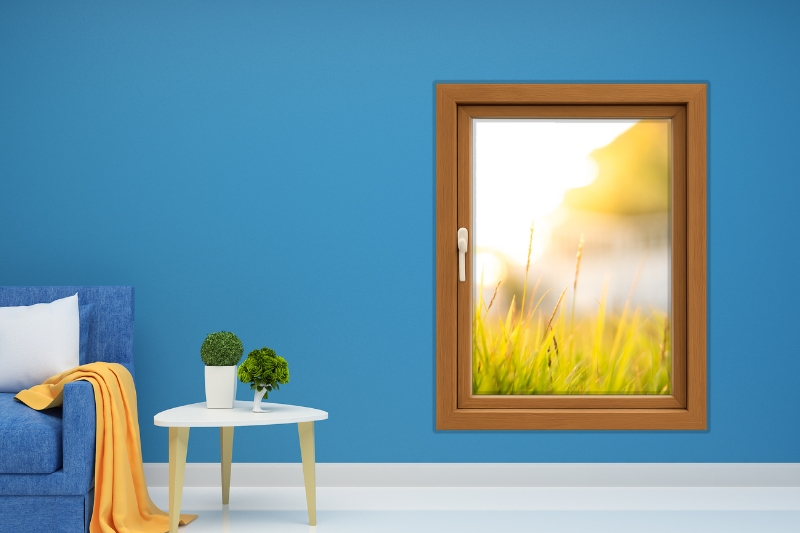

60 Series Casement Window
Designed for elegance and endurance, the 60 Series Casement Window brings a refined look to any space. Engineered for silent operation, superior insulation, and lasting durability — this series delivers style with security.
- Available in 3 outer frame sizes to suit different design needs
- Advanced locking system integrated within the sash for high security
- Dust-resistant inner profile with a modern beading structure
- Supports tall windows up to 8 feet in height
- Seamless compatibility with leading international hardware brands
- Dual gasket system for enhanced weather and sound insulation
- Optional multi-point locking mechanism for added safety
Best Suited For: Bedrooms, halls, kitchens — whether classic homes or modern spaces
Maximum Window Height: Up to 8 Feet
Profile Wall Thickness: 2.2mm standard, expandable to 2.5mm
GKBM 60 Series Casement Window Profiles
Technical profiles and specifications for our premium casement window systems.

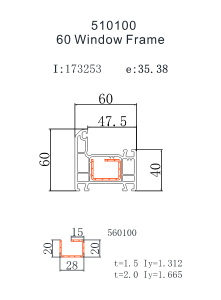

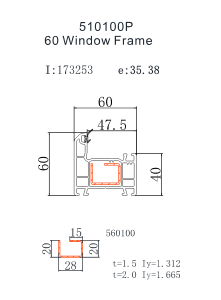

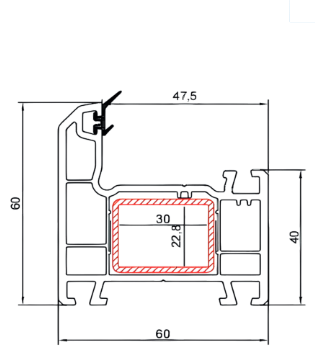

510100P
60 Window Frame

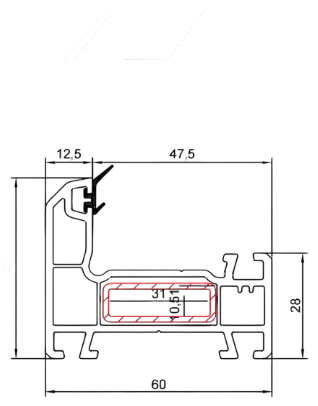

513200P
60 Low Window Frame

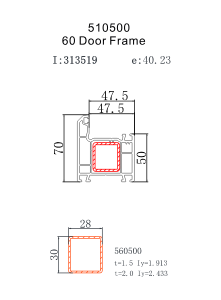

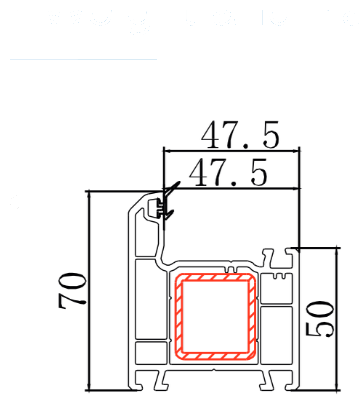

510500P
60 Door Frame

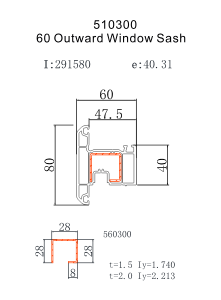

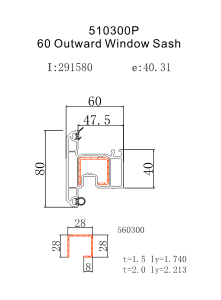

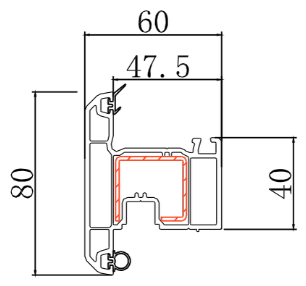

510300P
60 Outward Window Sash
511300P
60 Outward Door Sash
510600P
60 Inward Door Sash

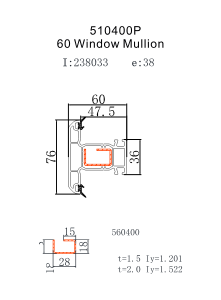

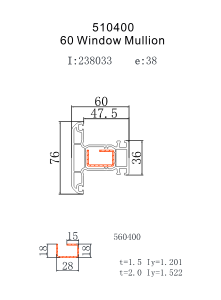

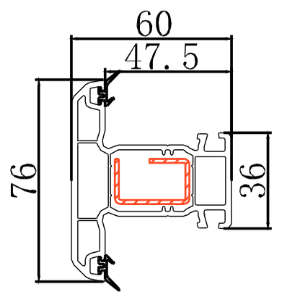

510400P
60 Window Mullion

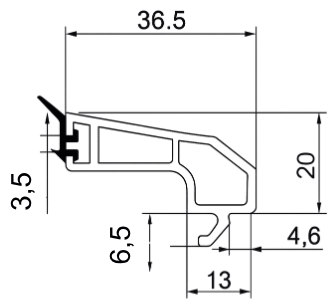

522100AP
Glazing Bead 36.5

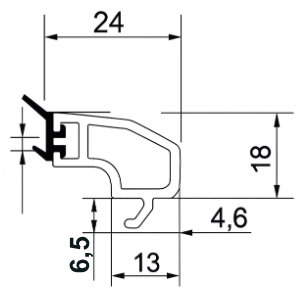

522000AP
Glazing Bead 24
520500
60 Square Post
520200
60 Bar Coupling
GKBM Casement Profiles - Applications & FAQs
Discover the best-suited applications for our premium window profiles and get quick answers to frequently asked questions.
Villas & Apartments
Perfect for residential spaces requiring high sound insulation and elegant outward sashes. The dual gasket sealing ensures that wind, dust, and rainwater stay outside, offering peace and quiet inside.
High-Rise Buildings
Specially engineered for high wind loads. The internal steel reinforcement chamber supports heights up to 8 feet, providing structural integrity and resistance against strong wind pressures at high altitudes.
Premium Soundproofing
Utilizing our 522100AP glazing beads, you can install double or triple glazed glass up to 36.5mm thickness, reducing outdoor noise levels by up to 40dB for a quiet home environment.
Frequently Asked Questions
The GKBM 60 Series is designed to support a maximum window sash height of up to 8 feet, reinforced with internal galvanized steel chambers.
It supports multiple glazing configurations, from single glass (4mm to 12mm) to double/triple insulated glass units (up to 36.5mm) using specialized glazing beads.
Yes. All GKBM uPVC profiles are formulated with high-quality Titanium Dioxide (TiO2) stabilizers, preventing discoloration, yellowing, or cracking under intense UV radiation.
